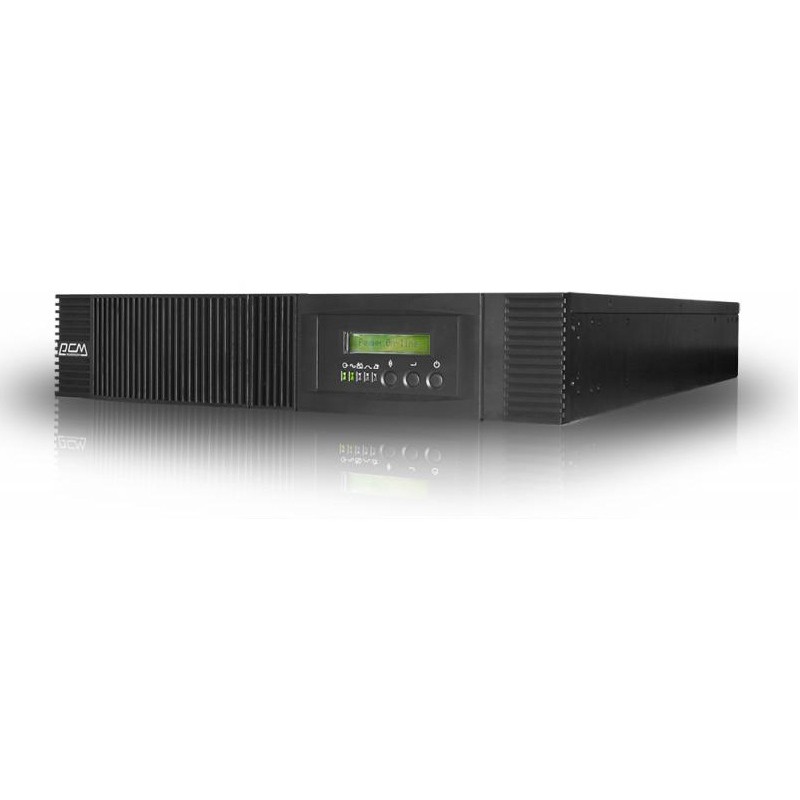

UPS Powercom On-Line 1/1 VRT-2000-2U

Viết đánh giá
Tình trạng: Chỉ còn 56 sản phẩm

- Model: Vanguard II Rack Tower

- Spec: 2000VA

- Class: Online 1/1 UPS

Hãy gọi Liên hệ 0599262828


  • Double conversion on-line technology with 0.9 power factor

  • Input power factor correction (PFC)

  • Pure sine wave output with less than 3% T.H.D.

  • High-efficiency mode selectable

  • Free-run mode setting

  • Active-fan operation dependant on load level to reduce noise and save energy

  • Protections for overload, short circuit, telecommunication, etc.

  • Emergency Power Off (EPO) protection

  • Remaining backup time display via LED or LCD (optional)

  • Extended backup time with battery pack




INPUT Voltage 100V / 110V / 115V / 120V / 127V / 220V / 230V / 240V
110V-level mode: 60V to 69V under 25% load, 70V to 79V under 50% load, 80V to 89V under 75% load, 90V to 144V with 100% load
220V-level mode: 120V to 139V under 25% load, 140V to 159V under 50% load, 160V to 179V under 75% load, 180V to 276V with 100% load
Frequency 50Hz / 60Hz ±2.5Hz auto sensing (45Hz to 65Hz user selectable)
Phase Single phase
Power factor > 0.97
OUTPUT Voltage 100V / 110V / 115V / 120V / 220V / 230V / 240V ±2% (selectable output voltage)
Frequency 50Hz / 60Hz ±0.2Hz
Harmonic distortion < 5% of T.H.D. at non-linear load; < 2.5% of T.H.D. at linear load
Waveform Pure sine wave
Phase Single phase
Efficiency Approximately 89%
Connections * Please refer below "Receptacle Options". The customized receptacle can be discussed.
PROTECTION Overload protection UPS automatic power off if overload exceeds 106% to 120% of nominal at 30 seconds; 121% to 150% for 10 seconds
Short circuit protection UPS output cut off immediately or protected by input fuse or circuit breaker
Telecommunication RJ45
Alarm Buzzer beeps under backup mode, battery low, battery charging fault, and overload
BATTERY Type Sealed, maintenance-free lead acid battery
Battery quantity 12V 7Ah x6
Backup time (100% load) 3 to 5 minutes
Protection Battery low cut-off without draining any current
Typical recharge time 4 hours to 90%
STANDARDS Dimension
(W x D x H)
428mm x 500mm x 84mm
Product weight 29kg(63.8lb)
Display (LED,LCD) LED - line mode (green), bypass / battery mode (yellow), fault (red); LCD - input/output voltage and frequency, online mode, backup mode, battery capacity, load level
Communication interface Standard - RS-232; *Optional - USB B-type and/or SNMP
Audible noise < 45dBA (1m from surface)
Ambient temperature 0 to 40℃
Storage temperature -15 °C to +50 °C
Humidity 0-95%, non-condensing
Capacity 2000VA/1800W
