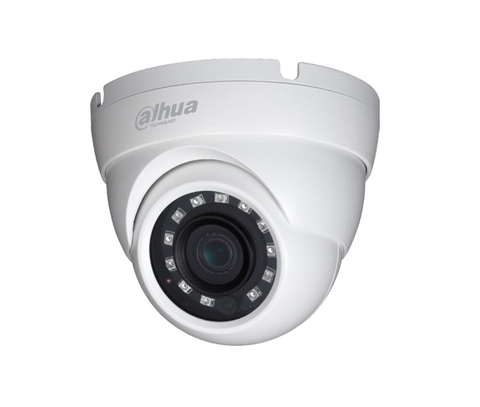

CAMERA 4.0MP HDCVI IR EYEBALL DH-HAC-HDW1400MP

Viết đánh giá
Tình trạng: Chỉ còn 68 sản phẩm
1.050.000₫ 1.500.000₫

- Max 30fps@4MP

- HD and SD output switchable

- 3.6mm fixed lens (2.8mm, 6mm optional)

- Max. IR length 30m, Smart IR

- IP67, DC12V

Hãy gọi Liên hệ 0599262828

CAMERA

Image Sensor 1/3″ CMOS
Effective Pixels 2688(H)×1520(V), 4.1MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination 0.03Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 30m (98 feet)
IR On/Off Control Auto / Manual
IR LEDs 12
Pan 0° ~ 360°
Tilt 0° ~ 90°
Rotation 0° ~ 360°

LENS

Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F2.0
Angle of View H: 84.8° (99.7°/52.5°)
Focus Control N/A
Close Focus Distance 1100mm (800mm/2200mm)
43.3” (31.5”/86.6”)

DORI DISTANCE

  Distance
Detect

25px/m - (8px/ft)

2.8mm: 63m(208ft)
3.6mm: 80m(262ft)
6mm: 117m(385ft)
Observe 63px/m - (19px/ft) 2.8mm: 25m(83ft)
3.6mm: 32m(105ft)
6mm: 47m(154ft)
Recognize 125px/m - (38px/ft) 2.8mm: 13m(42ft)
3.6mm: 16m(53ft)
6mm: 23m(77ft)
Identify 250ppm - (76px/ft) 2.8mm: 6m(21ft)
3.6mm: 8m(26ft)
6mm: 12m(39ft)

VIDEO

Resolution 4MP (2560×1440)
Frame Rate 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual

CERTIFICATIONS

Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

INTERFACE

Audio Interface N/A

GENERAL

Power Supply 12V DC ±25%
Power Consumption Max 3.2W (12V DC, IR on)
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH/ Start up should be done at above -40°C (-40°F)
Ingress Protection & Vandal Resistance IP67
Material Alunimium
Dimensions Φ93.4mm×79.4mm (Φ3.68"×3.13")
Weight 0.35kg (0.77lb)
